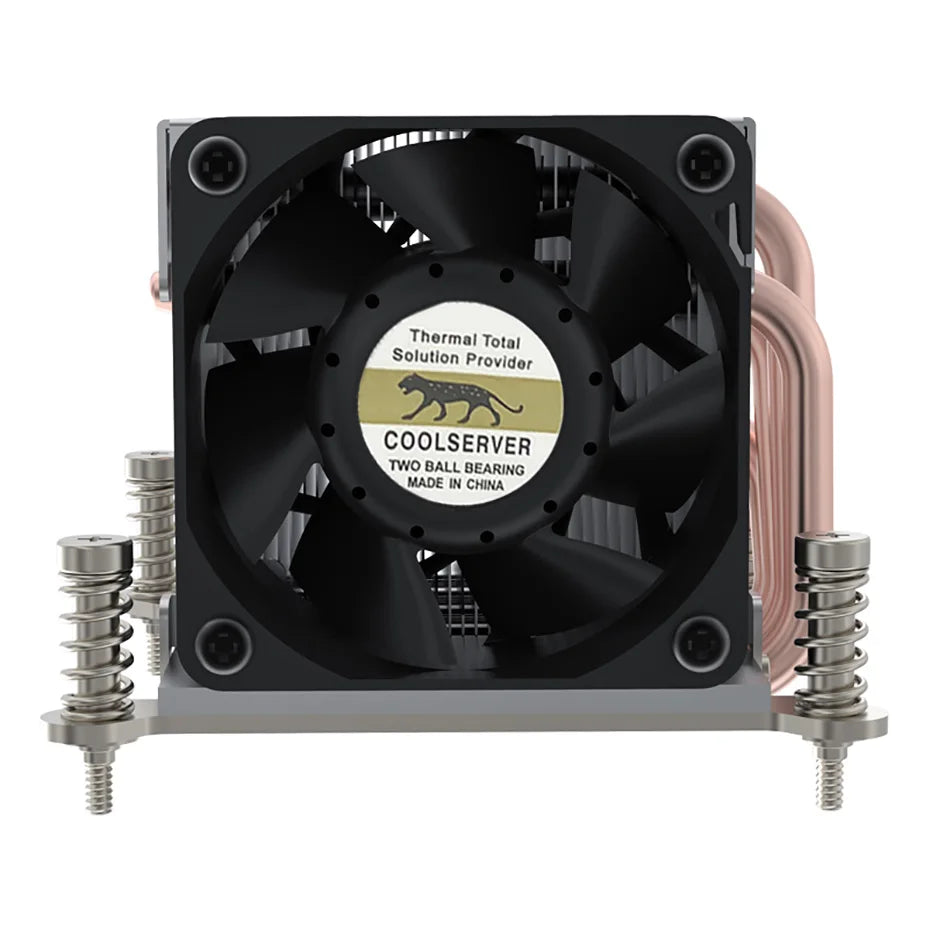

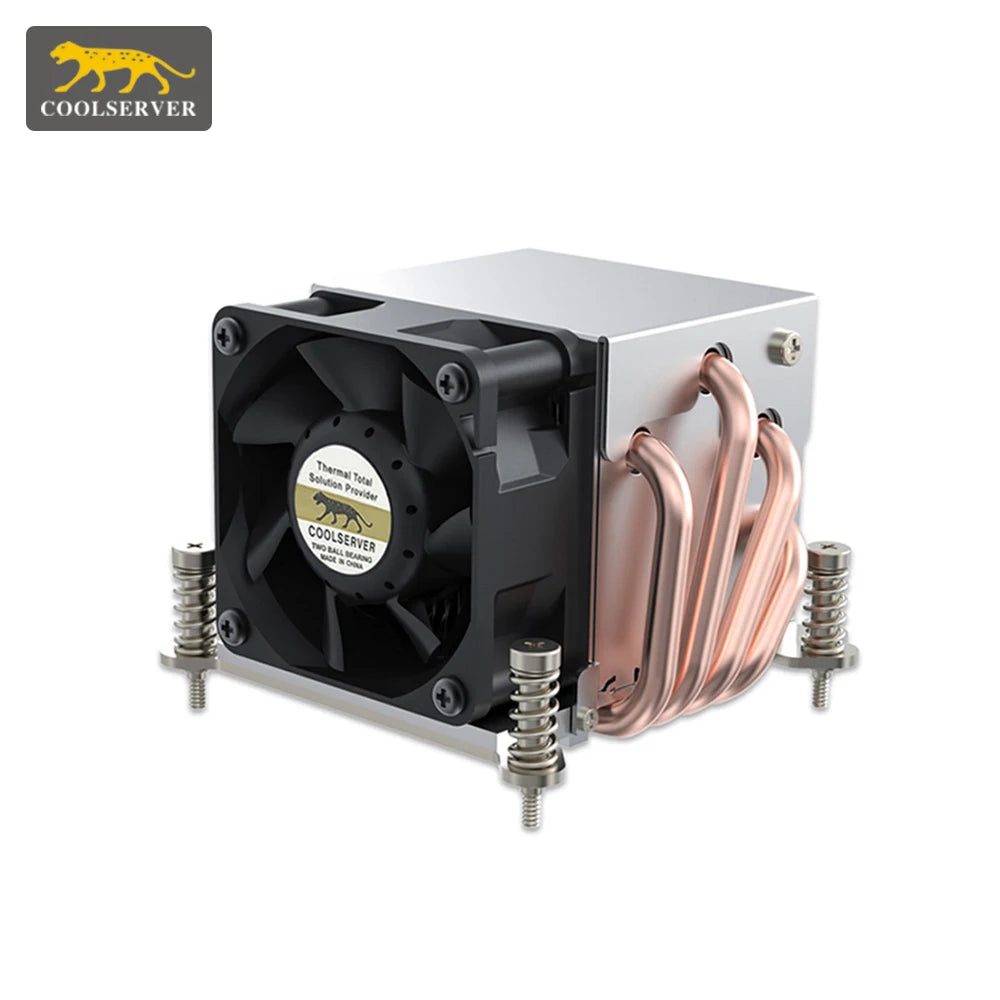

COOLSERVER R63 4 Heatpipe 2U Refroidisseur de processeur de serveur Ventilateur de refroidissement pour ordinateur de bureau pour Intel LGA2011 1700 115X AMD AM4

€61,99 EUR

Sold out

Taxes included. Shipping calculated at checkout.

Couleur R63 LGA2011 R63 AMD AM4 R63 lga115X R63-1 LGA2011 R63 LGA1700

Couleur de la lame noir

Prise en charge RVB pas de RVB

SPECIFICATIONS

Certification: CE,ROHS

Choice: yes

Interface d'alimentation: 4 broches

La vie des fans: 50 000 Heures

Le bruit: 30 dBA

Lignes: 4 LIGNES

Nom de marque: COOLSERVER

Numéro de Modèle: R63

Origine: CN (Origine)

PUI: 165

Paquet: Oui

Pression atmosphérique: 0

Processeur pris en charge: GA 1150,GA 1151,GA 1155,GA 1156,GA 1700,Régionale 2011,Prise AM5,AM4 après-midi

Produit chimique à haute préoccupation: Aucun

Quantité de lames: 7

Roulement: Roulement à billes

Série: R63

Taille du ventilateur: 90

Tuyaux de chaleur: 4

Type de refroidisseur: d'autres

Vitesse du ventilateur: 3000 - 6800

Volume D'air: 34.74

semi_Choice: yes

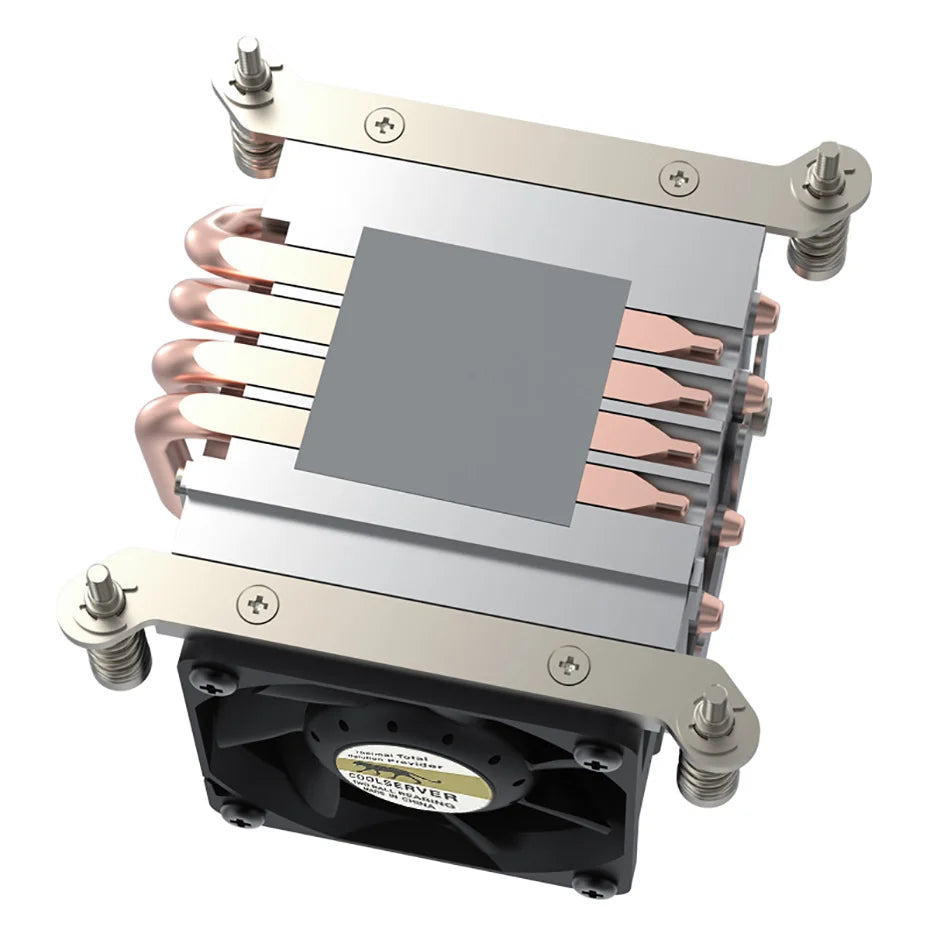

The CPU base size of R63-1 LGA2011 is 80*80mm, and the CPU base size of R63 LGA2011 is 94*56mm.

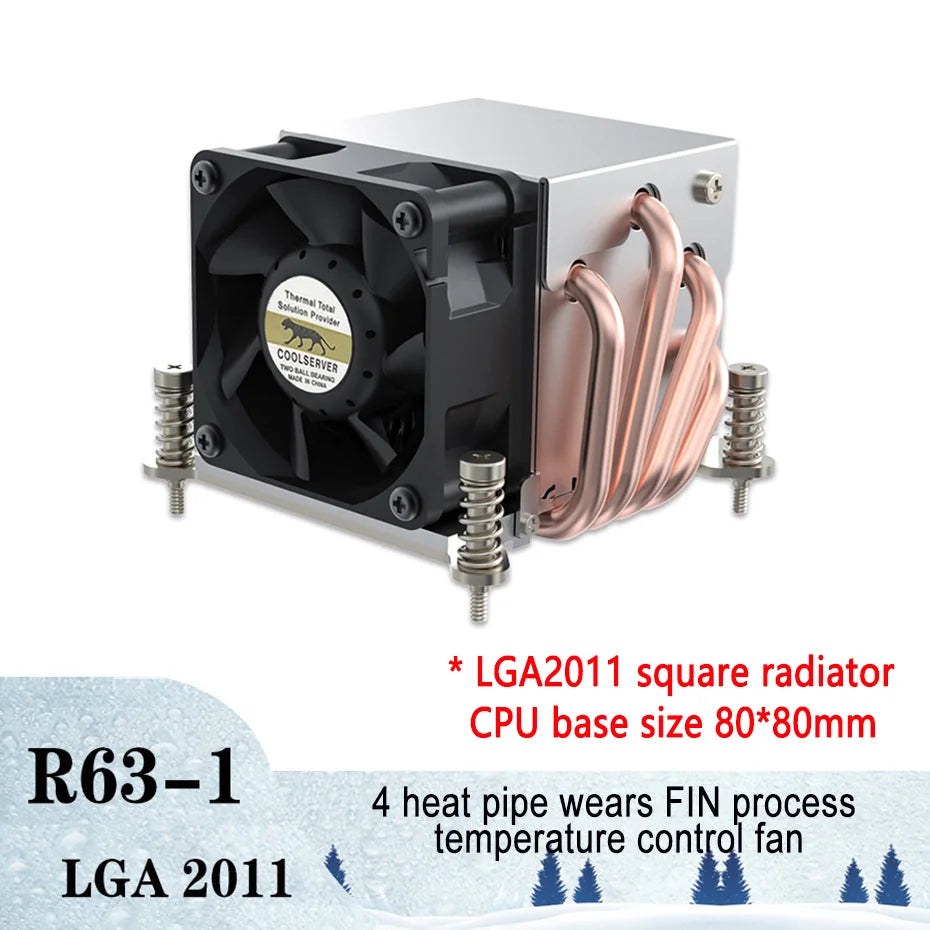

LGA 2011-R63-1 specifications

Brand: COOLSERVER
Product model: LGA 2011-R63-1
CPU type: LGA 2011 (square motherboard)
Voltage: 12V
Product size: L90*W90*H65mm
Fan speed: PWM 3000-6800RPM
Noise level: 49.4dBA (MAX)
Air volume: 34. 74CFM (MAX)
Fan plug: 4pin PWM
Bearing type: double ball
CPU hole distance: 80*80mm
Material: aluminum fins + 4 heat pipes
Power consumption: 165W

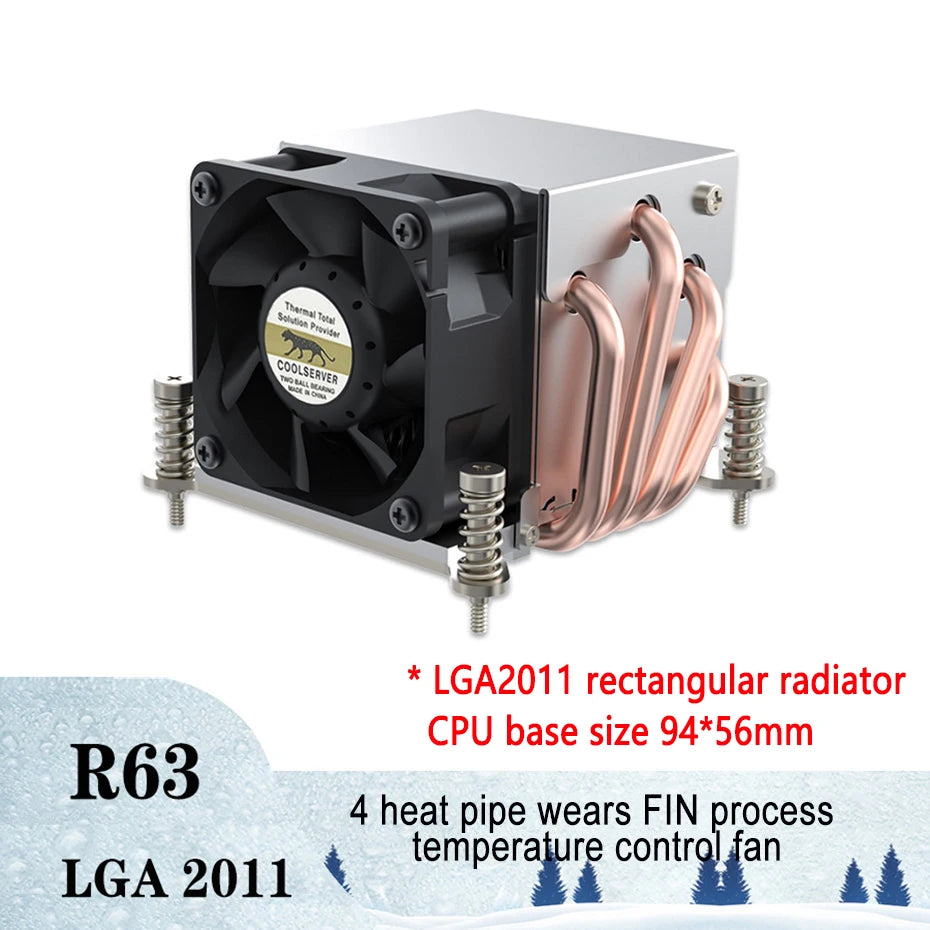

LGA 2011-R63 specifications

Brand: COOLSERVER
Product model: LGA 2011-R63
CPU type: LGA 2011 (rectangular motherboard)
Voltage: 12V
Product size: L90*W90*H65mm
Fan speed: PWM 3000-6800RPM
Noise level: 49.4dBA (MAX)
Air volume: 34. 74CFM (MAX)
Fan plug: 4pin PWM
Bearing type: double ball
CPU hole distance: 94*56mm
Material: aluminum fins + 4 heat pipes
Power consumption: 165W

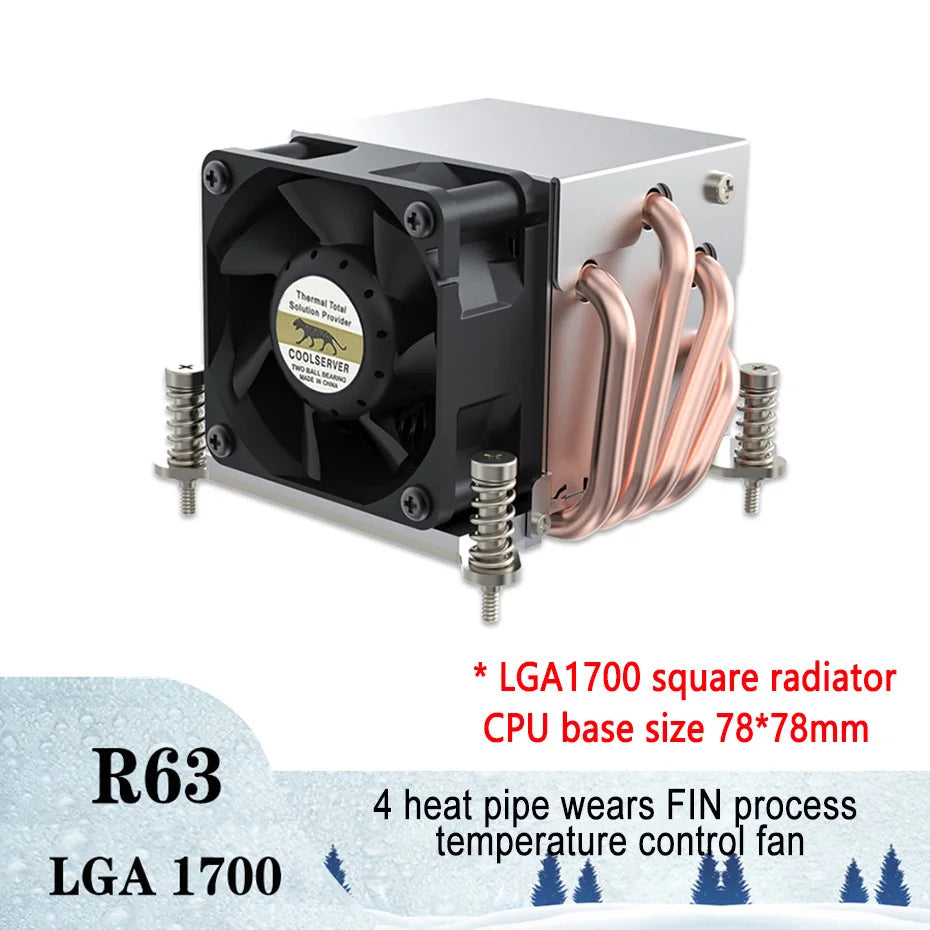

LGA 1700-R63 specifications

Brand: COOLSERVER
Product model: LGA 1700-R63
CPU type: LGA 1700 (square motherboard)
Voltage: 12V
Product size: L90*W90*H65mm
Fan speed: PWM 3000-6800RPM
Noise level: 49.4dBA (MAX)
Air volume: 34. 74CFM (MAX)
Fan plug: 4pin PWM
Bearing type: double ball
CPU hole distance: 78*78mm
Material: aluminum fins + 4 heat pipes
Power consumption: 165W

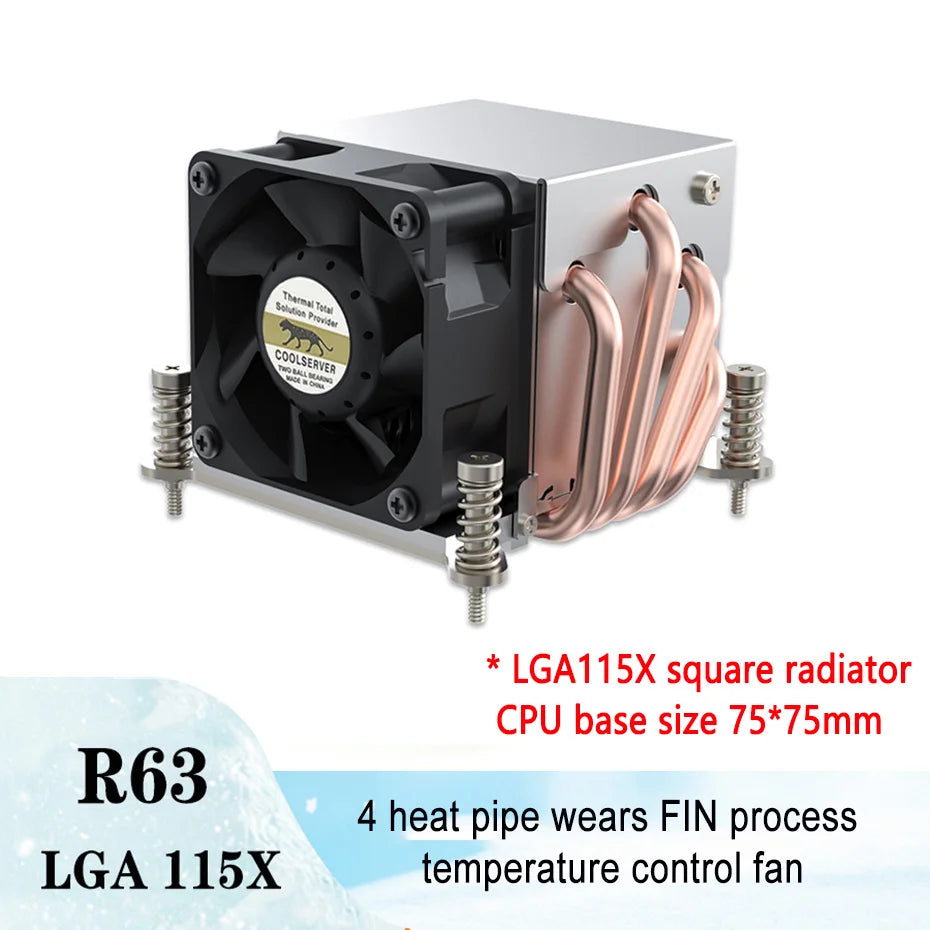

LGA 115X-R63 specifications

Brand: COOLSERVER
Product model: LGA 115X-R63
CPU type: LGA 115X (square motherboard)
Voltage: 12V
Product size: L90*W90*H65mm
Fan speed: PWM 3000-6800RPM
Noise level: 49.4dBA (MAX)
Air volume: 34. 74CFM (MAX)
Fan plug: 4pin PWM
Bearing type: double ball
CPU hole distance: 75*75mm
Material: aluminum fins + 4 heat pipes
Power consumption: 165W

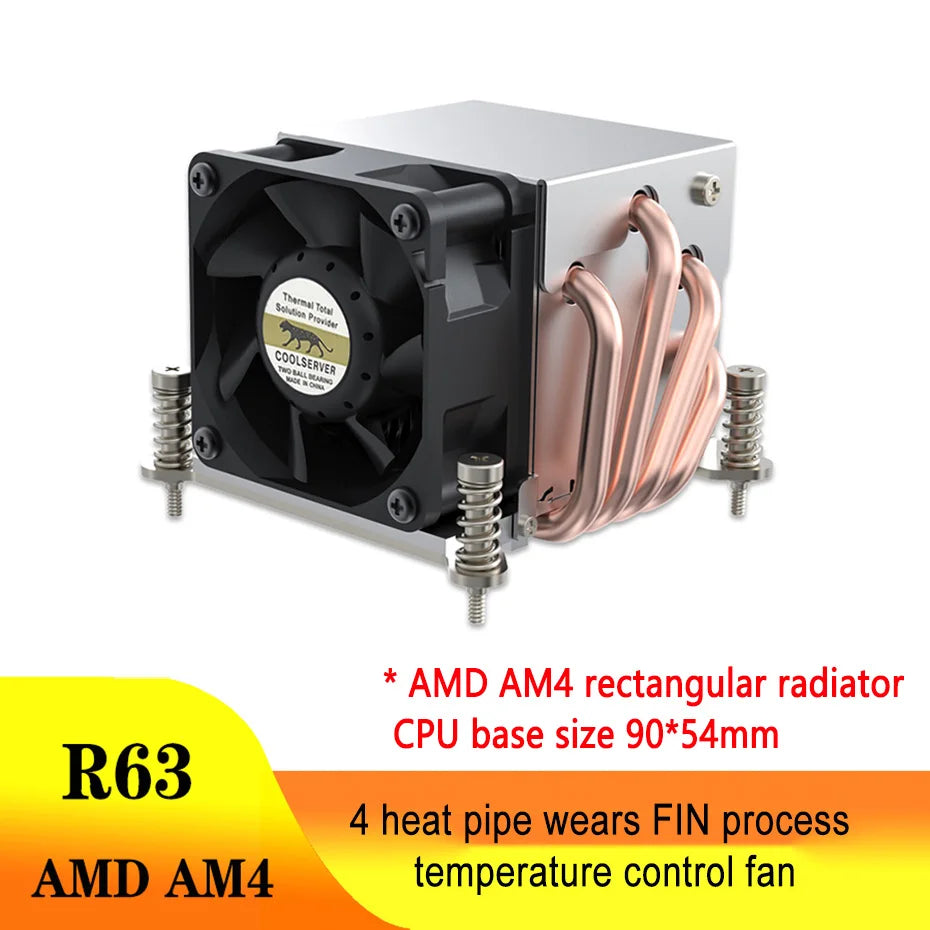

LGA AM4-R63 specifications

Brand: COOLSERVER
Product model: AMD AM4-R63
CPU type: AMD AM4 (rectangular motherboard)
Voltage: 12V
Product size: L90*W90*H65mm
Fan speed: PWM 3000-6800RPM
Noise level: 49.4dBA (MAX)
Air volume: 34. 74CFM (MAX)
Fan plug: 4pin PWM
Bearing type: double ball
CPU hole distance: 90*54mm
Material: aluminum fins + 4 heat pipes
Power consumption: 165W

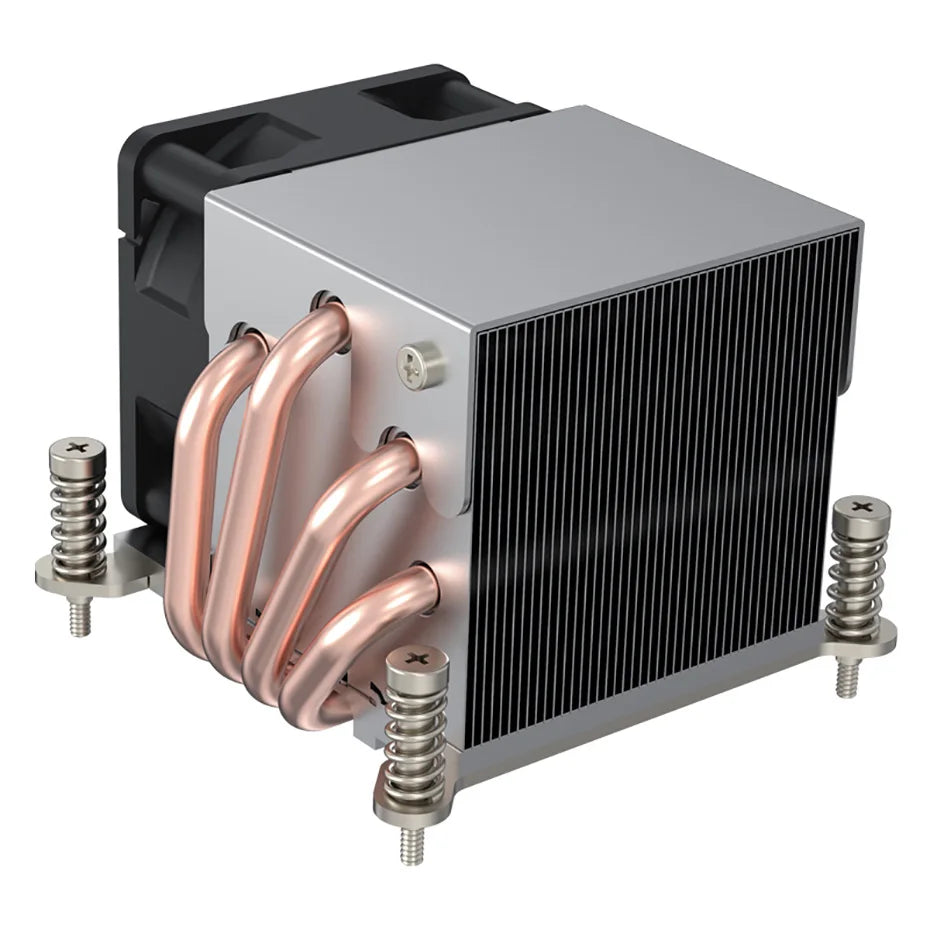

Using FIN and buckle FIN process

1. Between the radiator fin and the copper tube, the fin manufacturing process is adopted, and the fin and fin technology are combined to increase the surface heat dissipation area and stabilize the fin spacing.
2. The fins of the heat sink adopt fin technology not only to increase the firmness, but also to keep the spacing of each fin consistent. The airflow generated by the fan passes through each fin evenly and smoothly, thereby reducing wind cutting noise and enhancing heat dissipation. performance.
